Product Summary

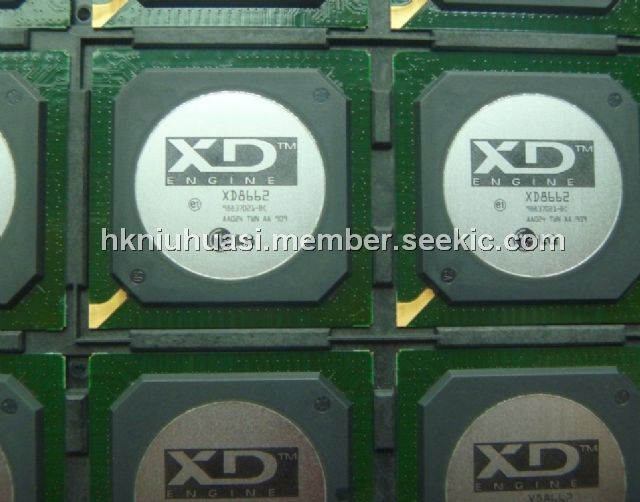

The FLI8662-LF-BC-XD is a single-chip dual-channel LCD TV controller. It offers high integration for advanced, dual-channel applications of Picture-in-Picture (PIP) and Picture-by-Picture (PBP). Two video decoders with 3D comb filters and two channels of DCDi processing, and true 10-bit performance provide the highest quality picture for a two-channel application. The applications of the FLI8662-LF-BC-XD include: LCD and PDP TV, DLP, LCD, and LCOS front and rear projection.
Features
FLI8662-LF-BC-XD features: (1)True 10-bit processing; (2)Integrated 3D video decoder; (3)Optional second integrated 3D video decoder; (4)Flexible digital and analog capture up to 165MHz UXGA; (5)Next generation 10-bit Faroudja DCDi Cinema format conversion; (6)VBI signal processing including WST version 1.5 support; (7)Flexible DDR memory interface with 10-bit video processing; (8)Faroudja TrueLife video enhancer; (9)Advanced Picture-in-Picture (PIP) features.

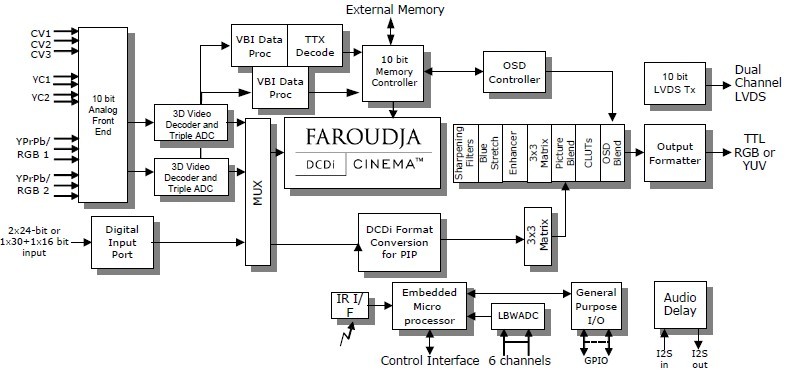

Diagrams
 |
