Product Summary

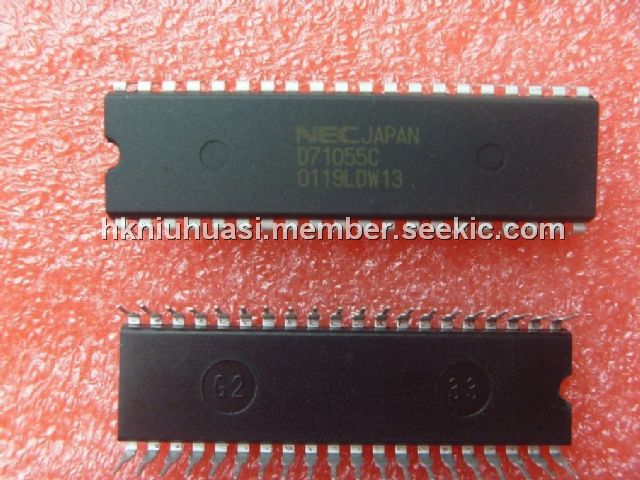

The D71055C is a low-power CMOS programmable parallel interface unit for use in microcomputer systems.
Parametrics
D71055C absolute maximum ratings: (1)power supply voltage: -0.5V to +7.0V; (2)input voltage: -0.5V to VDD+0.3V; (3)output voltage: -0.5V to VDD+0.3V; (4)power dissiption: 500mW; (5)operation temperature: -40℃ to +85℃; (6)storage temperature: -65℃ to +150℃.
Features
D71055C features: (1)Three 8-bit I/O ports; (2)Three programmable operation modes; (3)Bit manipulation command; (4)Microcomputer compatible; (5)CMOS technology; (6)Single +5V ±10% power supply; (7)Industrial temperature range:-40℃ to +85℃; (8)8MHz and 10MHz.

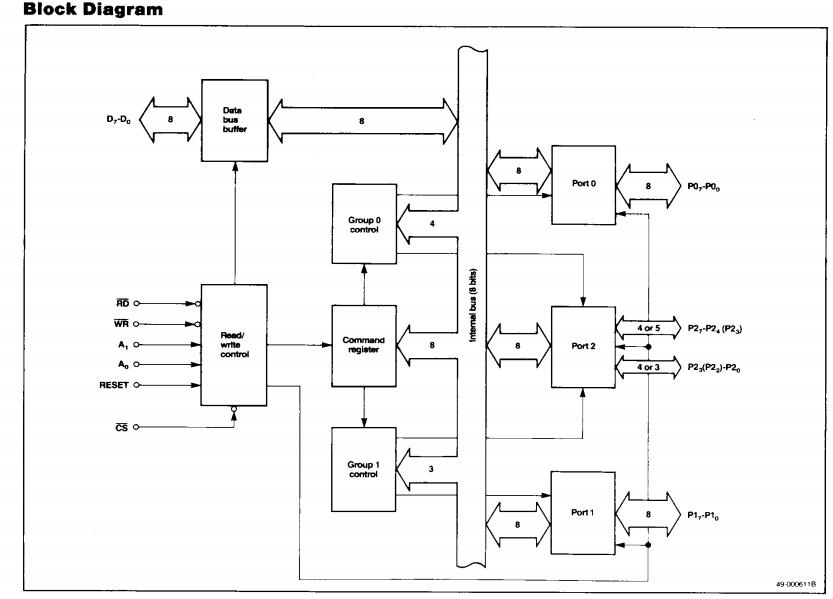

Diagrams
 |
 D71055C |
Other |
|
Data Sheet |
Negotiable |
|
||||
