Product Summary

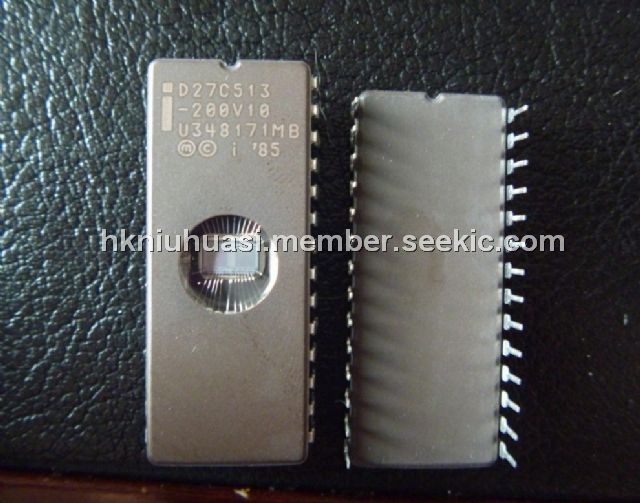

The D27C513-200V10 is a 5V-only, 524288-bit ultraviolet erassable and electrically programmable read only memory. It is organized as 4 pages of 16K 8-bit words. The D27C513-200V10’s paged organization brings 64 Kbyte storage capacity to existing 128K EPROM-based designs and to popular 8-bit microprocessor or microcontroller systems that have 64-Kbyte total addressing capability.
Parametrics
D27C513-200V10 absolute maximum ratings: (1)operating temperature during read: 0 to 70℃; (2)temperature under bias: -10 to 80℃; (3)storage temperature: -65 to 125℃; (4)voltage on any pin with respect to ground: -2 to 7V; (5)voltage on A9 with respect to ground: -2 to 13.5V; (6)VPP supply voltage with respect to ground during programming: -2 to 14.0V; (7)VCC supply voltage with respect to ground: -2 to 7.0V.
Features
D27C513-200V10 features: (1)paged organization; (2)software carrier capacity; (3)automatic page clear; (4)TTL and CMOS compatible; (5)170ns access time; (6)two line control; (7)low power; (8)compatible with industry standard EPROM pinouts.

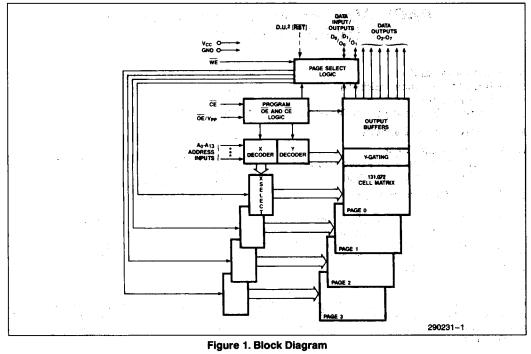

Diagrams
 |
