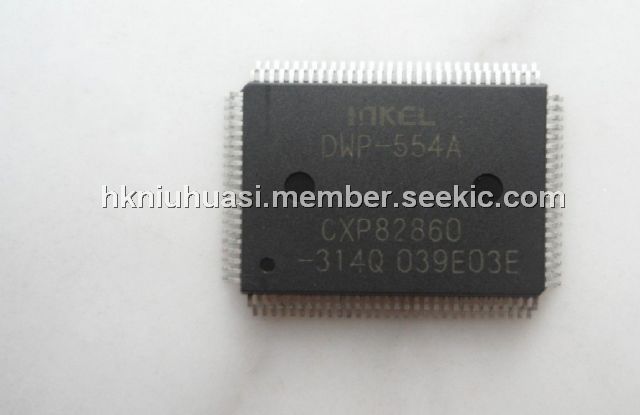

Product Summary
The CXP82860-314Q is a CMOS 8-bit single chip microcomputer integrating on a single chip an A/D converter, serial interface, timer/counter, time base timer, capture timer/counter, fluorescent display panel controller/driver, remote control reception circuit, and PWM output besides the basic configurations of 8-bit CPU, ROM, RAM, and I/O port. The CXP82860-314Q also provides sleep/stop function that enables lower power consumption.
Parametrics
CXP82860-314Q absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to 7.0V; (2)A/D converter GND voltage, AVSS: -0.3 to 0.3V; (3)A/D converter reference voltage, AVREF: -0.3 to 7.0V; (4)FDP display supply voltage, VFDP: -40 to 7.0V; (5)Operating temperature, Topr: -20 to 75℃; (6)Storage temperature, Tstg: -55 to 150℃; (7)Allowable power dissipation, PD: 600mW.
Features
CXP82860-314Q features: (1)Interruption 16 factors, 15 vectors, multi-interruption possible; (2)Standby mode SLEEP/STOP; (3)Package 100-pin plastic QFP; (4)Piggyback/evaluation chip CXP82800 100-pin ceramic QFP.
Diagrams
 |
