Product Summary
The BC141-16 is a silicon Planar Epitaxial NPN transistor in Jedec TO-39 metal case. It is particularly designed for audio amplifiers and switching application up to 1A. The complementary PNP type is the BC161-16.
Parametrics
BC141-16 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 100 V; (2)VCEO, Collector-Emitter Voltage (IB = 0): 60 V; (3)VEBO, Emitter-Base Voltage (IC = 0): 7 V; (4)IC, Collector Current: 1 A; (5)IB, Base Current: 0.1 A; (6)Ptot, Total Dissipation at Tamb ≤ 25 ℃: 0.65w; at TC ≤ 25℃ : 3.7W; (7)Tstg, Storage Temperature: -55 to 175 ℃; (8)Tj, Max. Operating Junction Temperature: 175 ℃.
Features
BC141-16 features: (1)High current (max. 1 A); (2)Low voltage (max. 60 V).

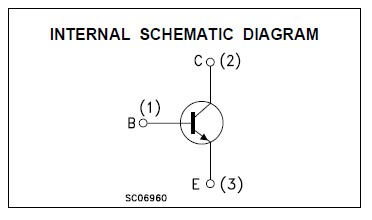

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BC141-16 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN General Purpose |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BC140 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC140-10 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC140-16 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC140-25 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC140-6 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BC141 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN General Purpose |
Data Sheet |
Negotiable |
|
||||||||||||
