Product Summary
The BA7046 is a SYNC separator IC with AFC. The BA7046 separates the synchronization signals from a video signal and output the horizontal and vertical synchronization signals (HD and VD), and the composite synchronization signal (Sync-out). The HD and VD pulse phase difference is guaranteed. The BA7046 is suitable for TVs and VCRs.
Parametrics
BA7046 absolute maximum ratings: (1)Power supply voltage: 8V; (2)Power dissipation: 500mW; (3)Operating temperature: -20 to 75℃; (4)Storage temperature: -55 to 125℃.
Features
BA7046 features: (1)Built-in AFC circuit; (2)HD and VD phase difference guaranteed; (3)Low power dissipation. (approx. 21mW); (4)Low external parts count; (5)8-pin DIP / SOP package; (6)Horizontal free-run frequency does not require adjustment.

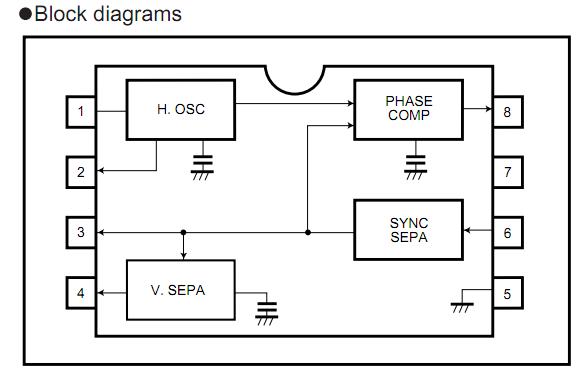

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

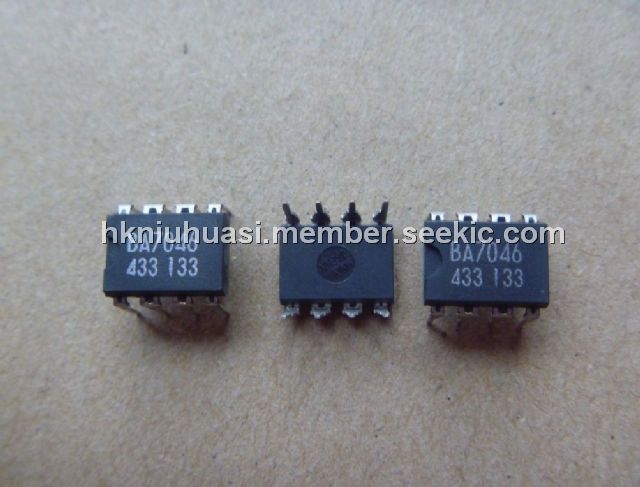

 BA7046 |
|
IC SEPARATOR SYNC DIP8 |
Data Sheet |
|
|
||||||
 |
BA7046F |
Other |
|
Data Sheet |
Negotiable |
|
||||||
 |
BA7046F-E2 |
ROHM Semiconductor |
Video ICs Video Sync Seperator |
Data Sheet |
|
|
||||||
