AT29lv1024-15JC

3-volt only, in-system Flash programmable, erasable read only memory, PLCC44, -0.6V to +6.25V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $14.25~17.52 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $14.25~17.52

PartNumber:: AT29lv1024-15JC

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:AT29lv1024-15JC
US $14.25 - 17.52
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

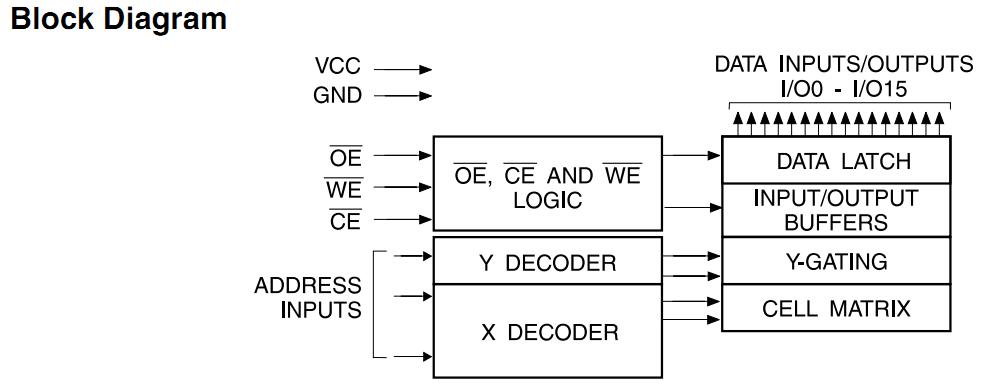

The AT29lv1024-15JC is a 3-volt only in-system Flash programmable and erasable read only memory (PEROM). Its 1 megabit of memory is organized as 65,536 words by 16 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the AT29lv1024-15JC offers access times to 150 ns with power dissipation of just 54 mW. When the device is deselected, the CMOS standby current is less than 50 µA.

Parametrics

AT29lv1024-15JC absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 (including NC Pins) with Respect to Ground: -0.6V to +13.5V.

Features

AT29lv1024-15JC features: (1)Single Voltage Range, 3V to 3.6V Supply; (2)3-volt Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time - 150 ns; (5)Low Power Dissipation: 15 mA Active Current; 50 μA CMOS Standby Current; (6)Sector Program Operation: Single-cycle Reprogram (Erase and Program); 512 Sectors (128 words/sector); Internal Address and Data Latches for 128 Words; (7)Fast Sector Program Cycle Time - 20 ms; (8)Internal Program Control and Timer; (9)DATA Polling for End of Program Detection ; (10)Typical Endurance > 10,000 Cycles; (11)CMOS and TTL Compatible Inputs and Outputs; (12)Commercial and Industrial Temperature Ranges.
