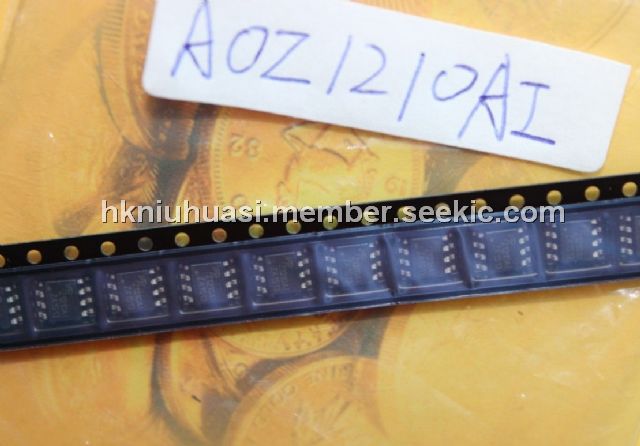

AOZ1210AI

2A buck regulator, SOP8, 30V, AOZ1210AI, Alpha & Omega Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.42~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.42~0.65

PartNumber:: AOZ1210AI

Brand:: Alpha & Omega Semiconductors - AOS | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Becky's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-15

From Other Seller

Part Number:AOZ1210AI
US $0.42 - 0.65
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AOZ1210AI is a high efficiency, simple to use, 2A buck regulator fiexible enough to be optimized for a variety of applications. The AOZ1210 works from a 4.5V to 27V input voltage range, and provides up to 2A of continuous output current on each buck regulator output. The output voltage is adjustable down to 0.8V. The applications of the AOZ1210AI are (1)Point of load DC/DC conversion; (2)Set top boxes; (3)DVD drives and HDD; (4)LCD Monitors & TVs; (5)Cable modems; (6)Telecom/Networking/Datacom equipment.

Parametrics

AOZ1210AI absolute maximum ratings: (1)Supply Voltage (VIN): 30V; (2)LX to GND: -0.7V to VIN+0.3V; (3)EN to GND: -0.3V to VIN+0.3V; (4)FB to GND: -0.3V to 6V; (5)COMP to GND: -0.3V to 6V; (6)BST to GND: VLX+6V; (7)VBIAS to GND: -0.3V to 6V; (8)Junction Temperature (TJ): +150℃; (9)Storage Temperature (TS): -65 to +150℃; (10)ESD Rating: Human Body Model: 2kV.

Features

AOZ1210AI features: (1)4.5V to 27V operating input voltage range; (2)70mΩ internal NFET, efficiency: up to 95%; (3)Internal soft start; (4)Output voltage adjustable down to 0.8V; (5)2A continuous output current; (6)Fixed 370kHz PWM operation; (7)Cycle-by-cycle current limit; (8)Short-circuit protection; (9)Thermal shutdown; (10)Small size SO-8 packages.
