Product Summary

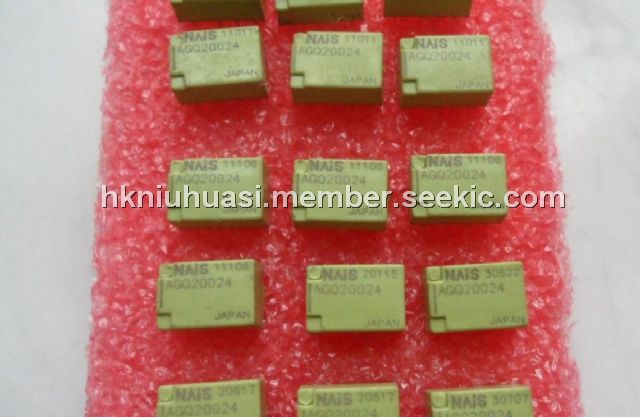

The AGQ20024 is an ultra-small package flat polarized relay.

Parametrics

AGQ20024 absolute maximum ratings: (1)Manufacturer: Panasonic; (2)Product Category: Low Signal Relays - PCB; (3)RoHS: Details; (4)Contact Form: 2 Form C (DPDT-BM); (5)Contact Current Rating: 1 A; (6)Coil Voltage: 24 VDC; (7)Maximum Switching Current: 1 A; (8)Coil Current: 9.6 mA; (9)Coil Type: Single Side Stable; (10)Power Consumption: 230 mW; (11)Termination Style: Solder Terminal; (12)Contact Rating: 1 A at 30 VDC / 300 mA at 125 VAC; (13).

Features

AGQ20024 features: (1)Compact flat body saves space; (2)Outstanding surge resistance; (3)The use of twin crossbar contacts ensures high contact reliability; (4)Increased packaging density; (5)Nominal operating power: 140 mW; (6)Outstanding vibration and shock resistance.

Diagrams

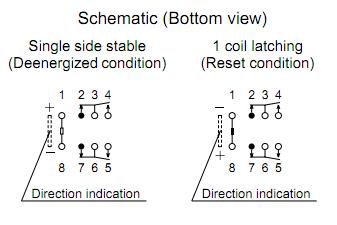

AGQ20024 diagram
