Product Summary

The ADSP-21060LKS-160 is a 32-bit signal processing microcomputer that offers high levels of DSP performance. The ADSP-21060LKS-160X builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus. Fabricated in a high speed, low power CMOS process, the ADSP-21060LKS-160 has a 25 ns instruction cycle time and operates at 40 MIPS.

Parametrics

ADSP-21060LKS-160 absolute maximum ratings: (1)Supply Voltage (VDD):-0.3V to +4.6V; (2)Input Voltage:-0.5V to VDD+0.5V; (3)Output Voltage Swing:-0.5V to VDD+0.5V; (4)Load Capacitance:200pF; (5)Storage Temperature Range:-65℃ to +150℃; (6)Lead Temperature (5 seconds):280℃; (7)Junction Temperature Under Bias:130℃.

Features

ADSP-21060LKS-160 features: (1)40 MIPS, 25 ns instruction rate, single-cycle instruction execution; (2)120 MFLOPS peak, 80 MFLOPS sustained performance; (3)Dual data address generators with modulo and bit-reverse addressing); (4)Efficient program sequencing with zero-overhead looping: Single-cycle loop setup; (5)IEEE JTAG Standard 1149.1 Test Access Port and on-chip emulation; (6)32-bit single-precision and 40-bit extended-precision IEEE floating-point data formats or 32-bit fixed-point data format.

Diagrams

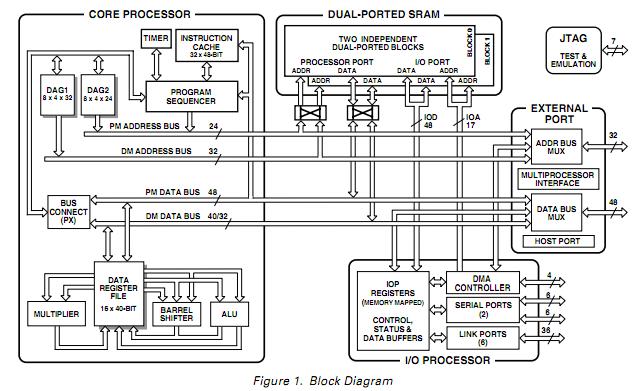

ADSP-21060LKS-160 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

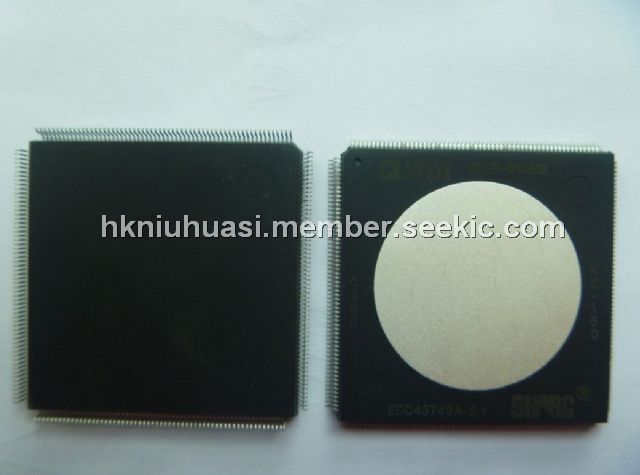

ADSP-21060LKS-160
ADSP-21060LKS-160


IC DSP CONTROLLER 32BIT 240MQFP

Data Sheet

0-1: $319.17
