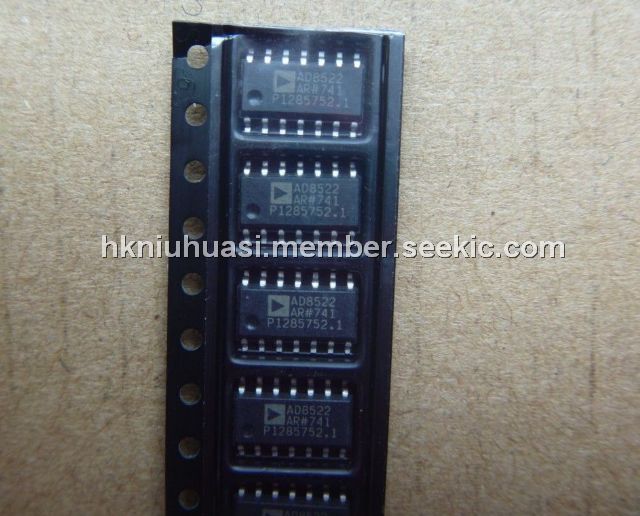

Product Summary

The AD8522ARZ is a complete dual 12-bit, single-supply, voltage output DAC in a 14-pin DIP, or SO-14 surface mount package. Fabricated in a CBCMOS process, features of the AD8522ARZ include a serial digital interface, onboard reference, and buffered voltage output. Ideal for +5 V-only systems, this monolithic device offers low cost and ease of use, and requires no external components to realize the full performance of the device. The applications of the AD8522ARZ are Digitally Controlled Calibration, Servo Controls, Process Control Equipment, Computer Peripherals, Portable Instrumentation and Cellular Base Stations Voltage Adjustment.

Parametrics

AD8522ARZ absolute maximum ratings: (1)VDD to DGND & AGND: –0.3 V, +7 V; (2)Logic Inputs and Output to DGND:–0.3 V, VDD + 0.3 V; (3)VOUT to AGND: –0.3 V, VDD + 0.3 V; (4)VREF to AGND: –0.3 V, VDD + 0.3 V; (5)AGND to DGND:–0.3 V, VDD; (6)IOUT Short Circuit to GND or VDD: 50 mA; (7)Maximum Junction Temperature (TJ max): 150℃; (8)Operating Temperature Range: –40 to +85℃; (9)Storage Temperature Range: –65 to +150℃; (10)Lead Temperature (Soldering, 10 sec): +300℃.

Features

AD8522ARZ features: (1)Complete Dual 12-Bit DAC; (2)No External Components; (3)+5 V Single-Supply Operation 610%; (4)4.095 V Full Scale (1 mV/LSB); (5)Buffered Voltage Outputs; (6)Low Power: 5 mW/DAC; (7)Space Saving 1.5 mm Height SO-14 Package.

Diagrams

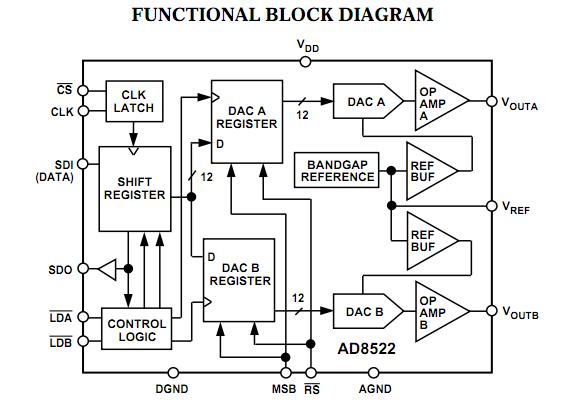

AD8522ARZ block diagram
