Product Summary
The 82B715 is a bipolar integrated circuit, which is intended for application in I2C bus systems. While retaining all the operating modes and features of the I2C system the 82B715 permits extension of the practical separation distance between components on the I2C bus by buffering both the data (SDA) and the clock (SCL) lines.
Parametrics
82B715 absolute maximum ratings: (1)Supply voltage range: –0.3 to +12 V; (2)Voltage range I2C Bus, SCL or SDA: 0 to VCC V; (3)Voltage range Buffered Bus: 0 to VCC V; (4)DC current (any pin): 60 mA; (5)Power dissipation: 300 mW; (6)Storage temperature range: –55 to +125 ℃; (7)Operating ambient temperature range: –40 to +85 ℃.
Features
82B715 features: (1)Dual, bi-directional, unity voltage gain buffer; (2)I2C bus compatible; (3)Logic signal levels may include both supply and ground; (4)X10 impedance transformation; (5)Wide supply voltage range.

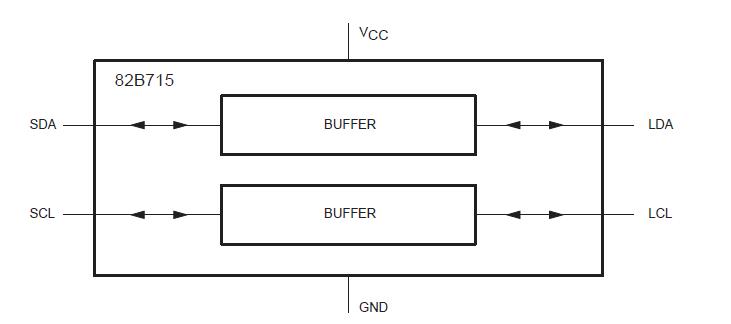

Diagrams
