Product Summary

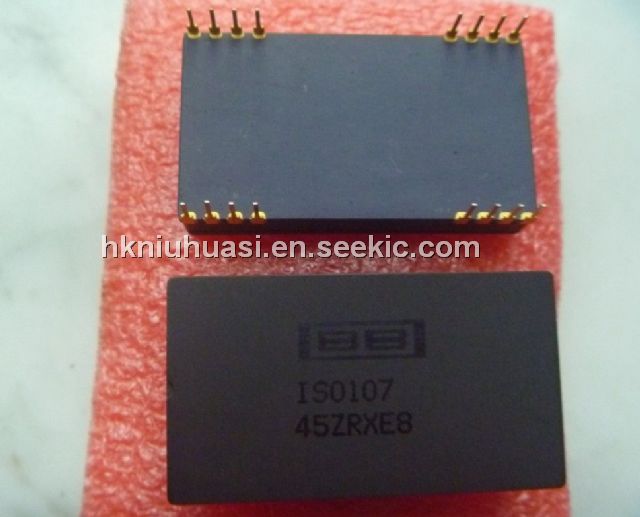

The ISO107 is an isolation amplifier which provides both signal and power across an isolation barrier. The ceramic side-brazed hybrid package contains a transformercoupled DC/DC converter and a capacitor-coupled signal channel. Extra power is available on the isolated input side for external input conditioning circuitry. The converter is protected from shorts to ground with an internal current limit, and the soft-start feature limits the initial currents from the power source. Multiple-channel synchronization can be accomplished by applying a TTL clock signal to paralleled Sync pins. The Enable control is used to turn off transformer drive while keeping the signal channel demodulator active. This feature provides a convenient way to reduce quiescent current for low power applications. Applications include multichannel isolated daya acquisition, biomedical instrumentation, power supply and motor control and ground loop elimination.
Parametrics
ISO107 absolute maximum ratings: (1)Supply Without amage: ±18V; (2)Sense Voltage: ±50V; (3)Com 1 to Gnd 1 or Com 2 to Gnd 2: ±200mV; (4)Enable, ync: 0V to +VCC2; (5)Continuous Isolation Voltage: 2500Vrms; (6)Junction Temperature: 150℃; (7)Storage Temperature:–25℃ to +125℃; (8)Lead Temperature, (soldering, 10s): 300℃.
Features
ISO107 features: (1)signal and power in one triple-wide package; (2)8000Vpk test voltage; (3)2500Vrms continuous ac barrier rating; (4)wide input signal range: -10V to +10V; (5)wide bandwidth: 20kHz small signal, 20kHz full power; (6)multichannel synchronization capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO107 |
Texas Instruments |
Special Purpose Amplifiers Hi-Vltg Internally Pwrd Iso Amp |
Data Sheet |
Negotiable |
|
||||||||
