Product Summary

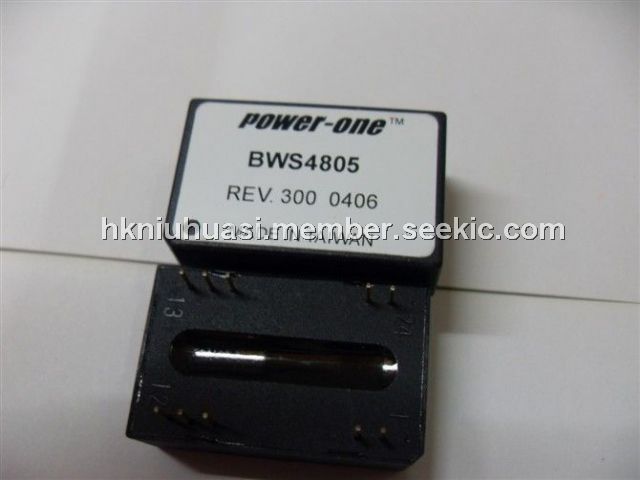

The BWS4805 DC/DC converter offers excellent regulation and isolation in an industry-standard DIP package. The BWS4805 is ideal for industrial, telecom, and networking applications, and features short circuit protection, low profile, and 500 VDC isolation. Please see the BWD series for dual output applications.

Parametrics

BWS4805 technical specifications: (1)Switching Frequency: 200 kHz; (2)Isolation: Input - Output: 500 VDC; Input - Case: 500 VDC; Output - Case: 500 VDC; (3)Isolation Resistance - Input to Output: 109 Ohms; (4)Isolation Capacitance - Input to Output: 80 pF; (5)No Load Input Power: 0.70 W; (6)Case Temperature: Standard Operating Range: -25 to +85℃; Storage Range: -40 to +125℃; (7)Humidity Max., Non-Condensing: 95%; (8)Vibration, 3 Axes, 5 Min Each: 5 g, 10 - 55 Hz; (9)Safety: UL, cUL, TUV; (10)Weight (approx.): 0.6 oz.

Features

BWS4805 features: (1)Industry Standard DIP Package; (2)Industry Standard Pinout; (3)85℃ Case Operation; (4)Short Circuit Protection; (5)Wide Range Inputs; (6)Input Pi Filter; (7)Regulated Outputs; (8)500V Isolation.

Diagrams

BWS4805 mechanical drawing
