Product Summary

The AZ830-2C-12DSEA is a polarized DIP relay single side stable.

Parametrics

AZ830-2C-12DSEA absolute maximum ratings: (1)Max. Solder Temp. : 270℃; (2)Max. Solder Time: 5 seconds; (3)Max. Solvent Temp.: 80℃; (4)Max. Immersion Time: 30 seconds.

Features

AZ830-2C-12DSEA features: (1)Low profile for compact board spacing; (2)DC coils to 48 VDC; (3)High sensitivity, 100 mW pickup; (4)Meets FCC Part 68.302 1500 V lightning surge; (5)Meets FCC Part 68.304 1000 V dielectric; (6)Life expectancy to 100 million operations; (7)High switching capacity, 60 W, 125 VA; (8)Fits standard 16 pin IC socket; (9)Epoxy sealed; (10)UL file E43203 (UL1950); CSA file LR 88413.

Diagrams

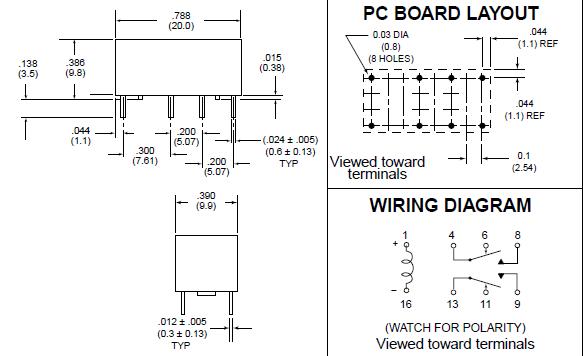

AZ830-2C-12DSEA MECHANICAL DATA
